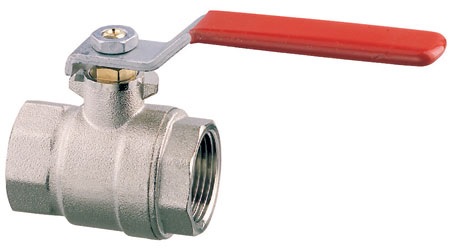

Good quality Italian made full flow ball valves at competitive prices. Suitable for industrial, pneumatic & hydraulic installations, including gasoline, fuel oils, kerosene, petrol & diesel. Ideal for hot & cold water, different oils & compressed air. • Minimum 100,000 operation design • 90 degree movement by either lever or tee handle
Working Temperatures: -20°C* to 150°C in absence of steam * Warning: the formation of ice can severely damage valves & piping Technical Specifications: BSP Parallel Thread – ISO 228 (equivalent to DIN EN ISO 228 & BS EN ISO 228) Bar* – Pressure Atmosphere kg/cm3 PSI* – LBS working pressure
Technical Specifications: BSP Parallel Thread – ISO 228 (equivalent to DIN EN ISO 228 & BS EN ISO 228) Bar* – Pressure Atmosphere kg/cm3 PSI* – LBS working pressure.
| additional information | suitable for: industrial, pneumatic & hydraulic installations, including gasoline, fuel oils, kerosene, petrol & diesel. ideal for: hot & cold water, different oils & compressed air minimum 100000 operation design 90° movement WARNING: the formation of |
| temperature | working air: (-) 15C to ( ) 220°C working water (no steam): 0°C to ( ) 150°C |
| pressure | 50 bar (pressure atmosphere kg/cm), 710psi (lbs working pressure) |
| thread | parallel female |
| material | body: nickel plated brass ball: hard chrome plated brass stem: brass seal: pure teflon o rings: viton/NBR handle: red coated zinc-plated steel |

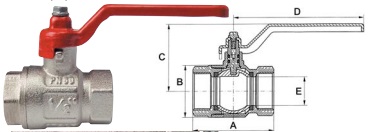

| dimensions | length 50mm, distance from centre of pipe to top of handle: 41mm, handle length: 80mm |
| approvals | thread: ISO 228, BS 2779, DIN 259 |
