Sale!

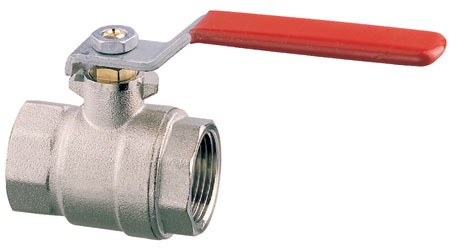

Ball Valve Female/Female Valve 3/8″ BSP

£5.00 £4.65

BALL VALVE PN50 FF LEVER 3/8″ BSP

Good quality full flow ball valves at competitive prices. Suitable for industrial, pneumatic & hydraulic installations, including gasoline, fuel oils, kerosene, petrol & diesel. Ideal for hot & cold water, different oils & compressed air.

Minimum 100,000 operation design
90 degree movement by either lever or tee handle

SKU: 1-75000 Categories: , , , ,

Description

Good quality Italian made full flow ball valves at competitive prices. Suitable for industrial, pneumatic & hydraulic installations, including gasoline, fuel oils, kerosene, petrol & diesel. Ideal for hot & cold water, different oils & compressed air. • Minimum 100,000 operation design • 90 degree movement by either lever or tee handle

Working Temperatures: -20°C* to 150°C in absence of steam * Warning: the formation of ice can severely damage valves & piping Technical Specifications: BSP Parallel Thread – ISO 228 (equivalent to DIN EN ISO 228 & BS EN ISO 228) Bar* – Pressure Atmosphere kg/cm3 PSI* – LBS working pressure

Technical Specifications: BSP Parallel Thread – ISO 228 (equivalent to DIN EN ISO 228 & BS EN ISO 228) Bar* – Pressure Atmosphere kg/cm3 PSI* – LBS working pressure.

additional information suitable for: industrial, pneumatic & hydraulic installations, including gasoline, fuel oils, kerosene, petrol & diesel. ideal for: hot & cold water, different oils & compressed air minimum 100000 operation design 90° movement WARNING: the formation of
temperature working air: (-) 15C to ( ) 220°C working water (no steam): 0°C to ( ) 150°C
pressure 50 bar (pressure atmosphere kg/cm), 710psi (lbs working pressure)
thread parallel female
material body: nickel plated brass ball: hard chrome plated brass stem: brass seal: pure teflon o rings: viton/NBR handle: red coated zinc-plated steel
dimensions length: 44mm, distance from centre of pipe to top of handle: 37mm, handle length: 80mm
approvals thread: ISO 228, BS 2779, DIN 259
