Garmin GT56UHD Transducer – Ultra High-Definition Sonar with CHIRP, ClearVü™ & SideVü™

The Garmin GT56UHD Transducer is the ultimate sonar solution for anglers, offering Ultra High-Definition ClearVü™ and SideVü™ scanning sonar, high-wide CHIRP traditional sonar, and multi-frequency coverage to optimize fishing performance in all depths. Whether you’re targeting deep-sea fish or structure along the seabed, the GT56UHD delivers crisp, vivid imaging, ensuring you never miss a target.

✅ Ultra High-Definition Sonar – Crystal-clear imaging of fish and underwater structures with ClearVü™ and SideVü™ scanning sonar.
✅ High-Wide CHIRP Traditional Sonar – Superior target separation and precise fish detection up to 244m (800ft).
✅ Extended Range SideVü™ Sonar – See up to 20% farther at 1,000 kHz, covering 152m (500ft) on each side of your boat.
✅ Multiple Frequency Options – Works across 455 kHz, 800 kHz, and 1,000 kHz for top performance at all depths.
✅ Vivid Colour Palettes – Easily distinguish fish, structures, and obstacles with high-contrast sonar imaging.
✅ Multiple Mounting Options – Choose between Transom, Thru-Hull, or Thru-Hull Pair configurations for optimal installation.
✅ Plug & Play with Garmin Devices – 12-pin connector ensures seamless integration with ECHOMAP™ and GPSMAP® series chartplotters.

Available in Transom Mount, Thru-Hull, and Thru-Hull Pair configurations, this versatile transducer integrates seamlessly with Garmin chartplotters and fishfinders, enhancing your on-water experience with industry-leading sonar clarity and greater SideVü range of 1,000 kHz.

✔ Sonar Frequencies: 150-240 kHz CHIRP, 455/800/1000 kHz (ClearVü & SideVü)
✔ Sonar Power: 350W (Traditional), 500W (ClearVü/SideVü)
✔ Max Depth: 244m (CHIRP), 122m (ClearVü), 152m (SideVü)
✔ Beamwidth: Optimized across all frequencies for precision scanning
✔ Cable Length: 7.62m (25ft) for easy installation
✔ Mounting Compatibility: 0°-70° transom angle

🔹 GT56UHD – Transom Mount – Ideal for small to medium-sized boats, easy to install.

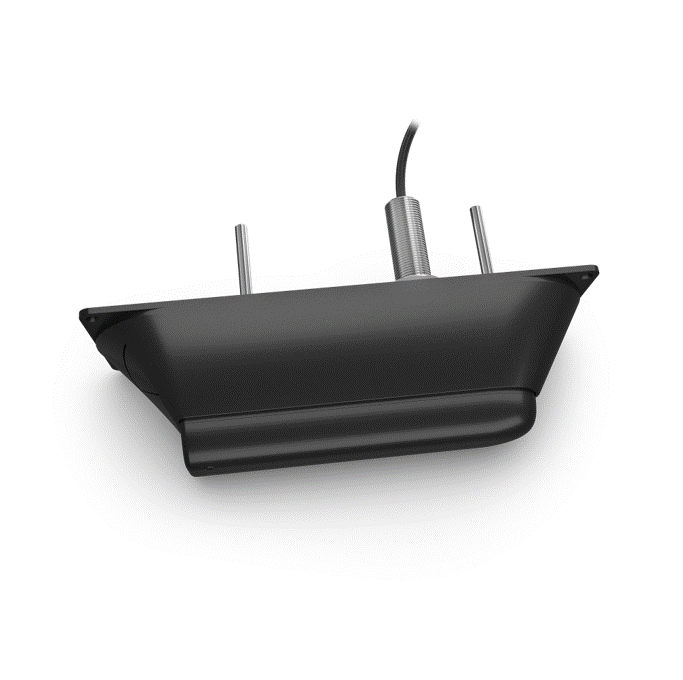

🔹 GT56UHD – Thru-Hull – Best for larger vessels requiring permanent installation.

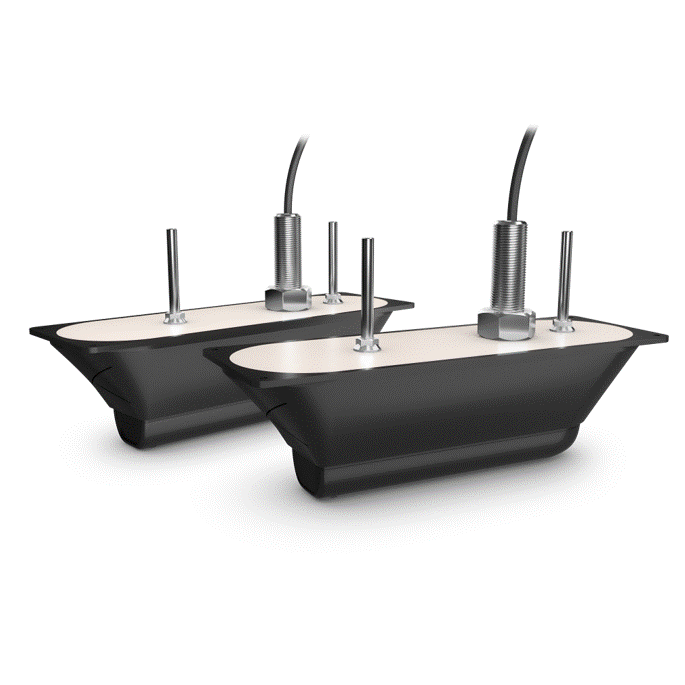

🔹 GT56UHD – Thru-Hull Pair – Dual transducer setup for enhanced left-right scanning clarity.

Garmin is a globally recognized leader in marine electronics, GPS navigation, and fishfinding technology, providing cutting-edge sonar solutions for recreational and professional anglers. The GT56UHD transducer is designed to deliver unmatched clarity, extended range, and high-contrast sonar imaging for the ultimate fishing experience.
