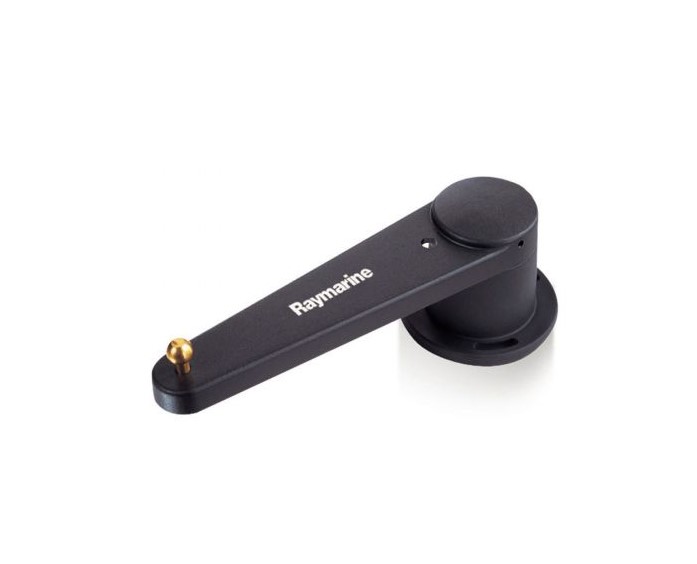

The Rudder Reference transducer is directly compatible with the ST60+ instruments on the SeaTalk1 network. The transducer simply connects to the back of one of the ST60+ Rudder Angle Indicator instrument.
The Rudder Reference transducer is also compatible with the i70, ST70 and ST70+ instruments on the SeaTalkNG network when used with an iTC-5 transducer converter (sold separately). The transducer is connected to the iTC-5 which converts the transducer signals to SeaTalkNG. The iTC-5 is then connected to your SeaTalkNG backbone.
Note: If your system contains an SPX autopilot, than the Rudder Reference should connect directly to the course computer and not the iTC-5.
Box Contents
| Part No. | Description | Quantity |
|---|---|---|
| 15365 | BLANK LABEL(TAMPER-PROOF) | 1 |
| 21154 | No8X3/4″PAN S/TAP POZI A2BL | 3 |
| 21159 | NO8X3/4″ CSK/HD/PZ/ST/BLACK | 2 |
| 22034 | M6 NUT STAINLESS. | 2 |
| 3014-008 | STUD M6 S.S | 1 |
| 3029-250-B | COMPOSITE LABEL SET 75 X 153 V4.20 | 1 |
| 4068-005 | RUDDER MTG ASSY | 1 |
| 44174 | POLY BAG 8″ X 10″ THIN GG | 1 |
| 44462 | AMBASSADOR GRIP SEAL BAGS | 1 |
| 44501-1 | RUDDER PACK AND FITTINGS | 1 |
| 5068-005 | RAYMARINE RUD-TRANS(STRIPPED) | 1 |
| 55012 | BALL JOINT CAP | 2 |
| 80017-7 | WARRANTY LEAFLET | 1 |
| 87012-3 | RUDDER REFERENCE INST SHEET | 1 |
