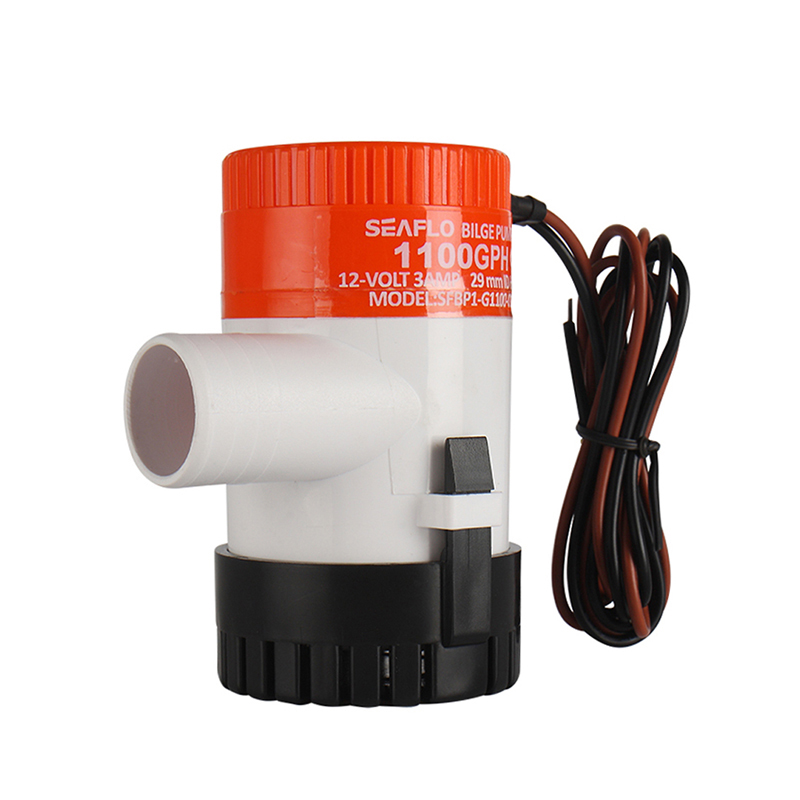

NON-AUTOMATIC SUBMERSIBLE BILGE PUMPS – 01 SERIES
● Entirely submersible
● Snap-off strainer base for easy
maintenance
● Strainer base fits industry standard
mounting conventions
● Operated via float switch or panel
switch (available separately)
● Sealed efficient, long-life motors
● Run dry capable for normal workloads
● Quiet operation
● Ignition protection
● Stainless steel shaft
● Anti-Airlock protection
● Exclusive moisture tight seals
● Marine grade blocked wiring
● 43°C (110°F) temperature limit
● CE, RoHS, ISO 8846 & ISO 8849
standards

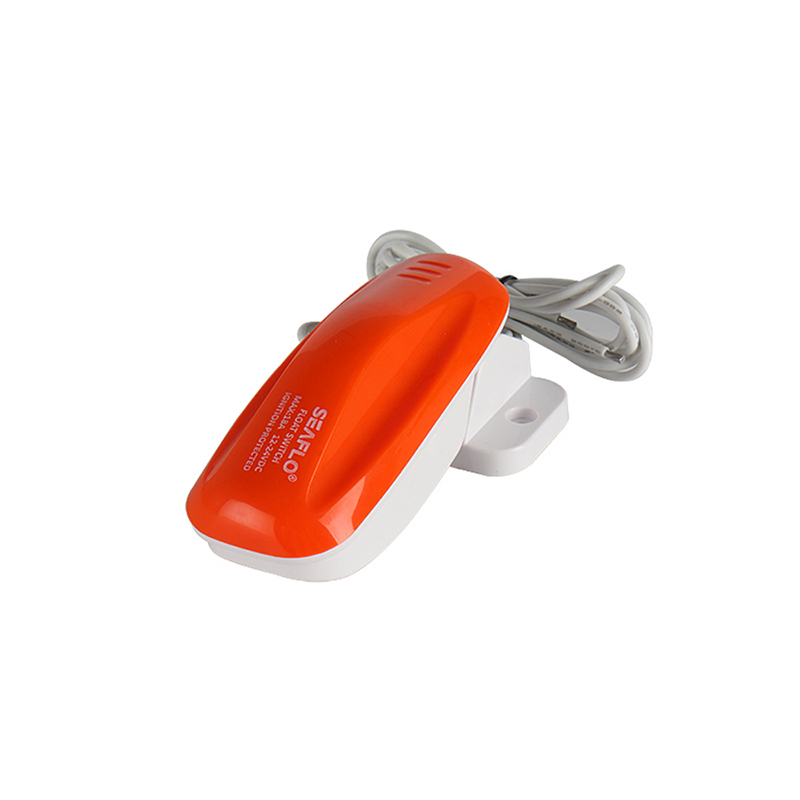

FLOAT SWITCH 02 SERIES
● Offers reliable control of bilge pumps drawing up to 18A max
● Heavy duty switch designed for the toughest applications
● Unique internal steel bearing activation
● Turns pump on when water level reaches 60mm
● Turns pump off when water level reaches 30mm
● Easy to install
● Mercury free
Art No. Flow Rate Volts Current Head Outlet
BP1G110013A 1100 GPH / 4164 LPH 12 V 4.0 A 4 m / 12′ 25 mm / 1″ & 29 mm / 1-1/8″
Wire Weight
1 m 0.40 kg
Art No. Max Amps (12 Volts) Max Amps (24 Volts)
BPS1802 18 A 8 A
Wire Weight
16 AWG x 1 m 0.14 kg
