14B SERIES – TIMER SENSING
● Pump starts running every 2-1/2 minutes for approximately 0.5 second. If
water is present, the pump will sense resistance and will continue to run
until water is removed
● Pump starts when the water reaches 4.5cm

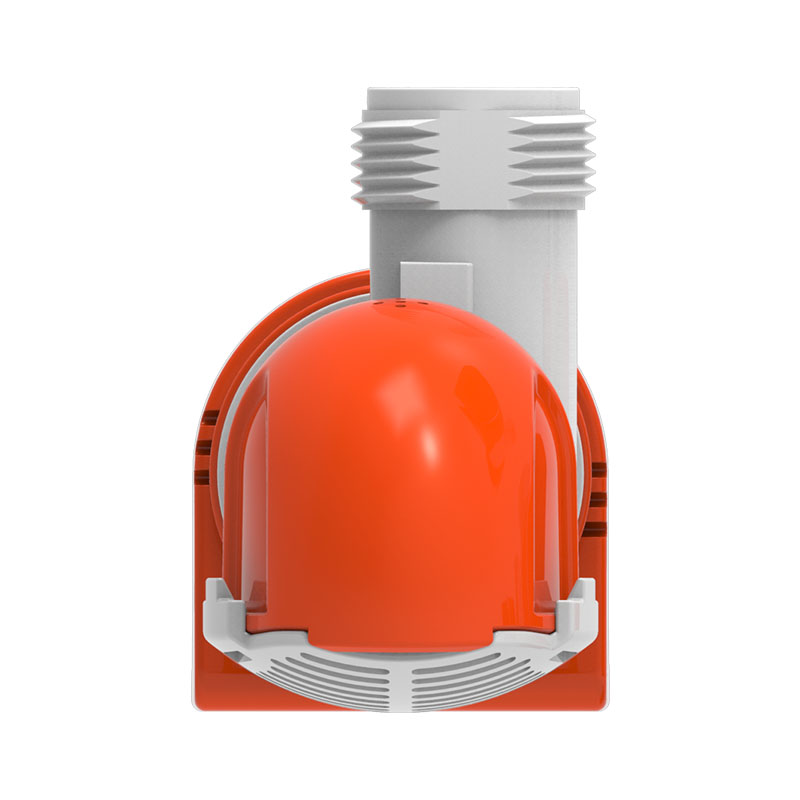

LOW PROFILE AUTOMATIC BILGE PUMPS
● Two versions available – Water Level Sensing or Timer Sensing
● No float switch required
● Low narrow design for tight/awkward bilge spaces
● Outlet & pump body can rotate 360° to suit your installation
● Can be mounted horizontally or vertically
● Low profile strainer – Leaves the bilge almost dry
● Entirely submersible & ignition protected
● Can be mounted horizontally, vertically or diagonally
● Sealed efficient, long-life motors with low power consumption
● Quiet operation
● Snap fit assembly makes it easy to remove for cleaning
● Efficient operation – very low power consumption
● Integrated non-return check valve to prevent backflow

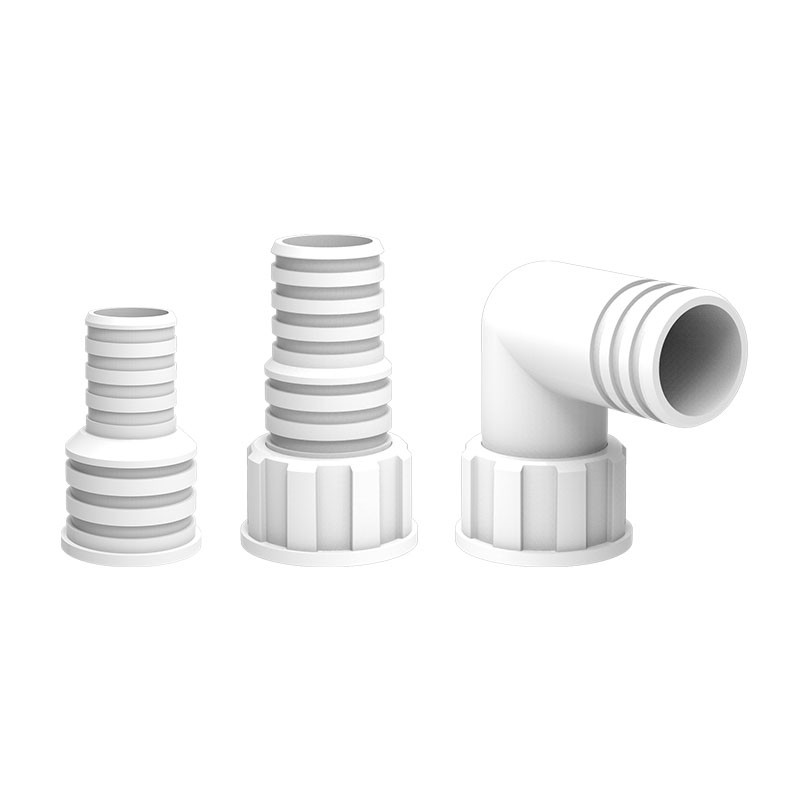

● Includes straight & 90° threaded hose barbs
● Anti-Airlock protection
● Five-blade impeller to ensure high flow rate
● Exclusive moisture tight seals
● Stainless-steel motor shaft
● Marine grade silicon blocked, tin coated wiring
● CE, RoHS, ISO 8846 & ISO 8849 standards
Art No. Flow Rate Volts Current Head
BP1G80014B 800 GPH / 3028 LPH 12 V 3.2 A 3.2 m / 10.5′ Automatic Timer Sensor
Outlet Weight
19 mm / 3/4″,25 mm / 1” &29 mm / 1-1/8″ 0.38 kg
