● Low narrow design for tight/awkward bilge spaces
● Outlet & pump body can rotate 360° to suit your installation
● Can be mounted horizontally or vertically

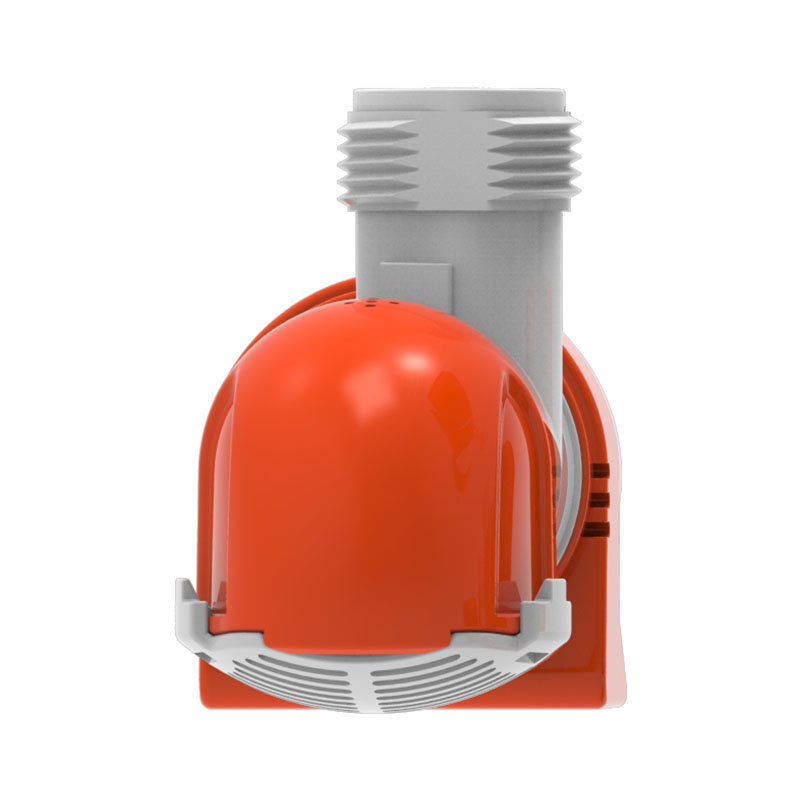

● Low profile strainer – Leaves the bilge almost dry
● Entirely submersible & ignition protected
● Sealed efficient, long-life motors with low power consumption
● Quiet operation
● Snap fit assembly makes it easy to remove for cleaning
● Efficient operation – very low power consumption
● Integrated non-return check valve to prevent backflow
● Operated via float switch or panel switch (available separately)

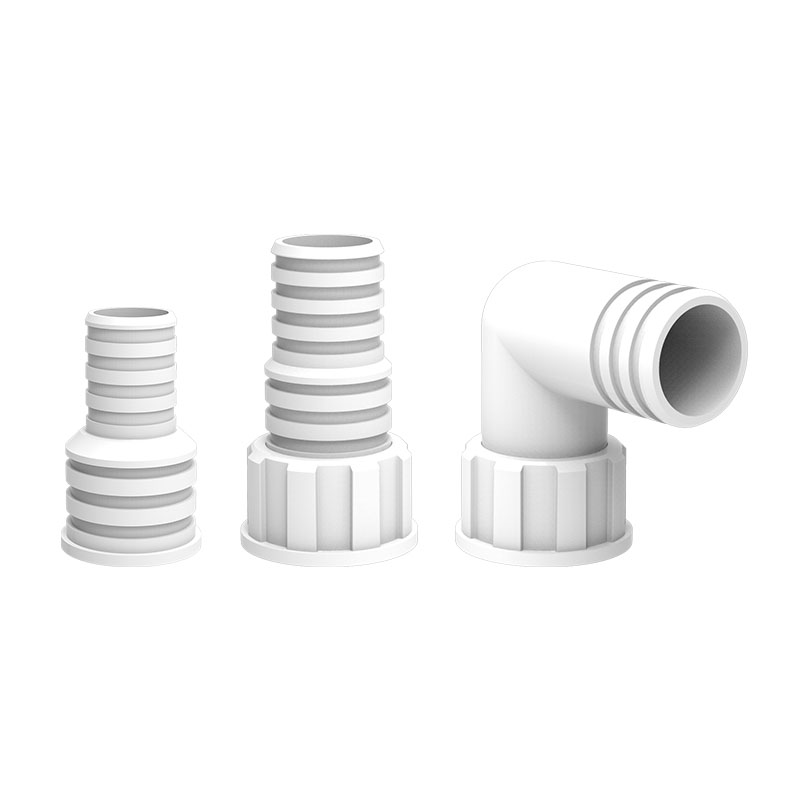

● Includes straight & 90° threaded hose barbs
● Anti-Airlock protection
● Five-blade impeller to ensure high flow rate
● Exclusive moisture tight seals
● Stainless-steel motor shaft
● Marine grade silicon blocked, tin coated wiring
● CE, RoHS, ISO 8846 & ISO 8849 standards
Art No. Flow Rate Volts Current Head Outlet Wire Weight
BP1G80014C 800 GPH / 3028 LPH 12 V 3.2 A 3.2 m / 10.5′ 19 mm / 3/4″, 25 mm / 1″ & 29 mm / 1-1/8″ 18 AWG x 1 m 0.35 kg
