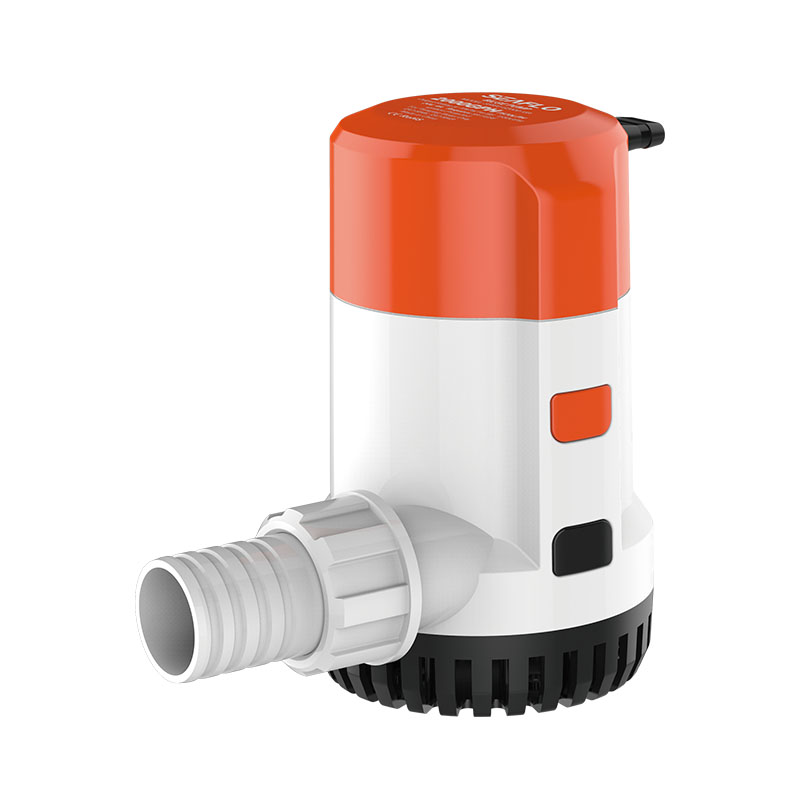

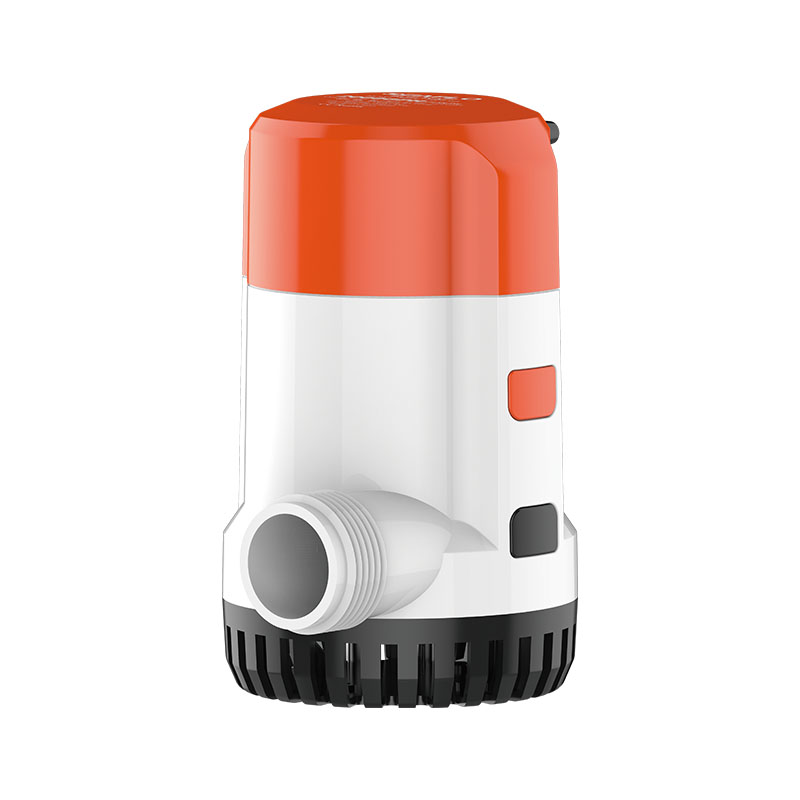

NON-AUTOMATIC SUBMERSIBLE BILGE PUMPS – 13A SERIES
● Entirely submersible & ignition
protected

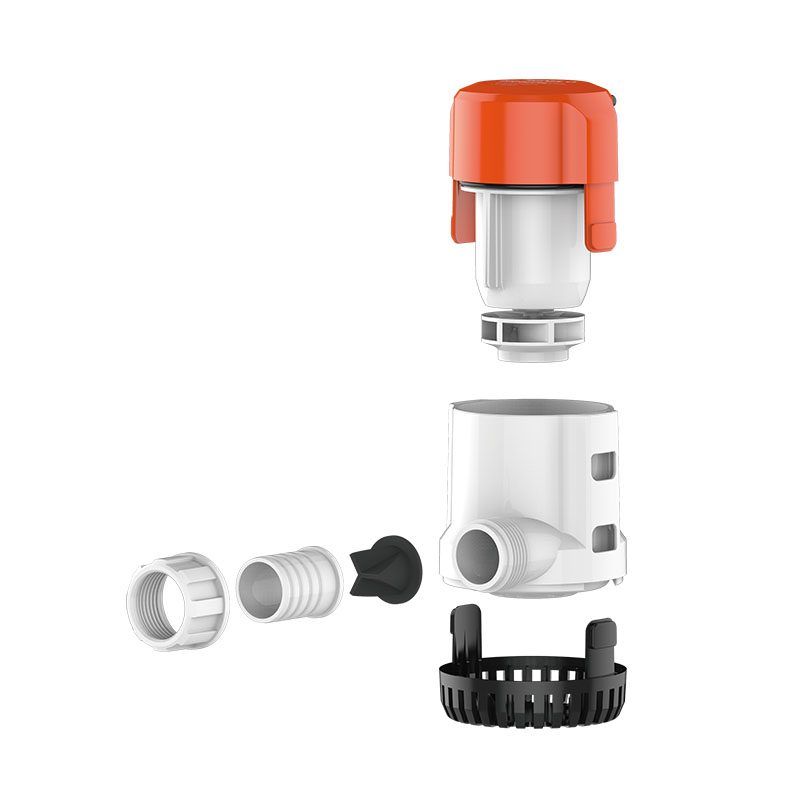

● Snap-off strainer base for easy
maintenance
● Operated via float switch or panel
switch (available separately)
● Integral check valve to prevent water
back flow
● Sealed efficient, long-life motors
● Quiet operation
● Stainless steel motor shaft
● Anti-Airlock protection
● Exclusive moisture tight seals
● Marine grade silicon blocked, tin coated
wiring
● Includes removable threaded discharge
straight fitting
● CE, RoHS, ISO 8846 & ISO 8849
standards
Art No. Flow Rate Volts Current Head Outlet Wire Weight
BP1G60013A 600 GPH / 2271 LPH 12 V 2.5 A 2.5 m / 7.5′ 19 mm / 3/4″ & 29 mm / 1 – 1/8″ 1 m 0.40 kg
BP1G80013A 800 GPH / 3028 LPH 12 V 3.5 A 3 m / 10′ 19 mm / 3/4″ & 29 mm / 1 – 1/8″ 1 m 0.40 kg
BP1G110013A 1100 GPH / 4164 LPH 12 V 4.0 A 4 m / 12′ 25 mm / 1″ & 29 mm / 1-1/8″ 1 m 0.40 kg
BP1G150013A 1500 GPH / 5678 LPH 12 V 4.5 A 5 m / 16.4′ 29 mm / 1-1/8″ 1 m 0.65 kg
