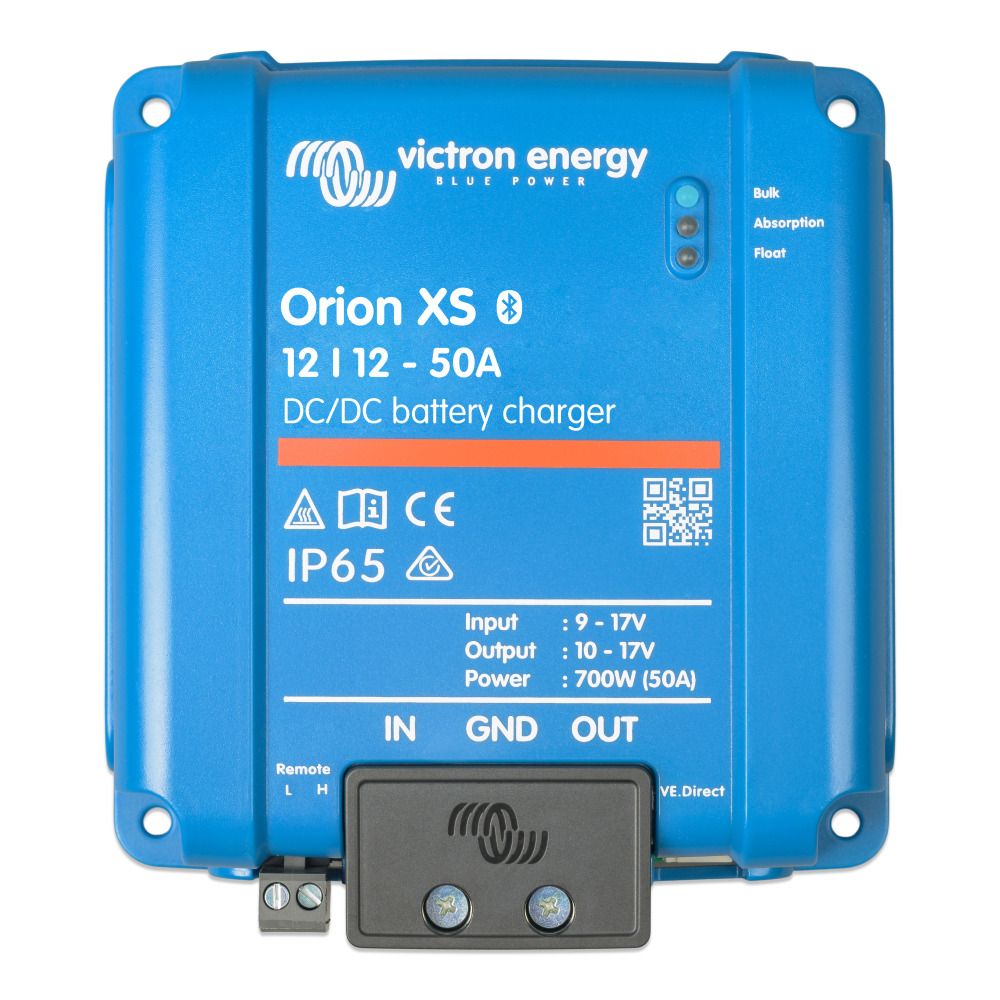

The Victron Energy Orion XS 12/12-50A DC-DC Battery Charger is a high-performance, adaptive charging solution, designed for dual battery systems in boats, RVs, and vehicles with intelligent alternators. This advanced charger ensures optimal battery charging and power stability, even in systems with Euro 5/6 smart alternators or extended cable runs that cause voltage drops.
✅ Adaptive 4-Stage Charging – Automatically adjusts absorption time to prevent overcharging
✅ Smart Alternator Compatibility – Activates only when the engine is running, preventing power drain
✅ Adjustable Charging Current – Fine-tune the output in 0.1A increments using the VictronConnect App
✅ Bluetooth Smart Enabled – Monitor, configure, and update the charger wirelessly
✅ Comprehensive Protection – Overload, short circuit, and over-temperature protection
✅ Parallel Connection Support – Connect multiple units to increase charging capacity
✅ Remote On/Off Function – Integrates with Battery Management Systems (BMS)
✅ Low Temperature & Input Voltage Shutdown – Protects lithium batteries and starter battery health
✅ VE.Direct & VE.Smart Networking – Advanced monitoring & communication with GX devices
✅ IP65-Rated – Fully dust-tight and protected against heavy rain
With a wide input/output voltage range and fully programmable charging algorithms, the Orion XS is engineered for efficiency, safety, and adaptability. Whether used as a DC-DC charger or a power supply, it prevents starter battery discharge while delivering a precise, controlled charge to the service battery.
-
Input Voltage Range: 9-17V
-
Output Voltage Range: 10-17V (adjustable via VictronConnect)
-
Output Current: 1A – 50A (configurable)
-
Maximum Continuous Power: 700W
-
Maximum Efficiency: 98.5%
-
Protection Category: IP65 (dustproof & water-resistant)
-
Communication Interfaces: Bluetooth, VE.Direct, VE.Smart Networking
-
Operating Temperature: -20°C to +60°C
-
Dimensions: 137.3 x 123.1 x 40mm
-
Weight: 0.33kg
Victron Energy is a globally recognised leader in marine, off-grid, and automotive power solutions. Known for high-performance inverters, chargers, and battery management systems, Victron Energy products offer reliability, efficiency, and smart technology integration for professional and recreational users.
